The five-day job: A BlackByte ransomware intrusion case study

Threat actors leverage legitimate remote access tools during intrusions to blend into a victim network. In this case, the threat actor utilized the remote administration tool AnyDesk, to maintain persistence and move laterally within the network. AnyDesk was installed as a service and was run from the following paths:

• C:systemtestanydeskAnyDesk.exe
• C:Program Files (x86)AnyDeskAnyDesk.exe
• C:ScriptsAnyDesk.exe

Successful connections were observed in the AnyDesk log file ad_svc.trace involving anonymizer service IP addresses linked to TOR and MULLVAD VPN, a common technique that threat actors employ to obscure their source IP ranges.

Reconnaissance

We found the presence and execution of the network discovery tool NetScan being used by the threat actor to perform network enumeration using the following file names:

• netscan.exe (SHA-256:1b9badb1c646a19cdf101ac4f6fdd23bc61eaab8c9f925eb41848cea9fd0738e)
• netapp.exe (SHA-256:1b9badb1c646a19cdf101ac4f6fdd23bc61eaab8c9f925eb41848cea9fd0738e)

Additionally, execution of AdFind (SHA-256: f157090fd3ccd4220298c06ce8734361b724d80459592b10ac632acc624f455e), an Active Directory reconnaissance tool, was observed in the environment.

Credential access

Evidence of likely usage of the credential theft tool Mimikatzwas also uncovered through the presence of a related log file mimikatz.log. Microsoft IR assesses that Mimikatz was likely used to attain credentials for privileged accounts.

Lateral movement

Using compromised domain admin credentials, the threat actor used Remote Desktop Protocol (RDP) and PowerShell remoting to obtain access to other servers in the environment, including domain controllers.

Data staging and exfiltration

In one server where Microsoft Defender Antivirus was installed, a suspicious file named explorer.exe was identified, detected as Trojan:Win64/WinGoObfusc.LK!MT, and quarantined. However, because tamper protection wasn’t enabled on this server, the threat actor was able to disable the Microsoft Defender Antivirus service, enabling the threat actor to run the file using the following command:

explorer.exe P@$$w0rd

After reverse engineering explorer.exe, we determined it to be ExByte, a GoLang-based tool developed and commonly used in BlackByte ransomware attacks for collection and exfiltration of files from victim networks. This tool is capable of enumerating files of interest across the network and, upon execution, creates a log file containing a list of files and associated metadata. Multiple log files were uncovered during the investigation in the path:

• C:ExchangeMSExchLog.log

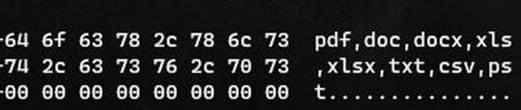

Analysis of the binary revealed a list of file extensions that are targeted for enumeration.

Forensic analysis identified a file named data.txt that was created and later deleted after ExByte execution. This file contained obfuscated credentials that ExByte leveraged to authenticate to the popular file sharing platform Mega NZ using the platform’s API at:

• hxxps://g.api.mega.co[.]nz

We also determined that this version of Exbyte was crafted specifically for the victim, as it contained a hardcoded device name belonging to the victim and an internal IP address.

ExByte execution flow

Upon execution, ExByte decodes several strings and checks if the process is running with privileged access by reading .PHYSICALDRIVE0:

• If this check fails, ShellExecuteW is invoked with the IpOperation parameter RunAs, which runs explorer.exe with elevated privileges.

After this access check, explorer.exe attempts to read the data.txt file in the current location:

• If the text file doesn’t exist, it invokes a command for self-deletion and exits from memory:

C:Windowssystem32cmd.exe /c ping 1.1.1.1 -n 10 > nul & Del <PATH>explorer.exe /F /Q

• If data.txt exists, explorer.exe reads the file, passes the buffer to Base64 decode function, and then decrypts the data using the key provided in the command line. The decrypted data is then parsed as JSON below and fed for login function:

{
	“a”:”us0”,
	“user”:”<CONTENT FROM data.txt>”
}

Finally, it forms a URL for sign-in to the API of the service MEGA NZ:

• hxxps://g.api.mega.co[.]nz/cs?id=1674017543

Data encryption and destruction

On devices where files were successfully encrypted, we identified suspicious executables, detected by Microsoft Defender Antivirus as Trojan:Win64/BlackByte!MSR, with the following names:

• wEFT.exe
• schillerized.exe

The files were analyzed and determined to be BlackByte 2.0 binaries responsible for encryption across the environment. The binaries require an 8-digit key number to encrypt files.

Two modes of execution were identified:

• When the -s parameter is provided, the ransomware self-deletes and encrypts the machine it was executed on.
• When the -a parameter is provided, the ransomware conducts enumeration and uses an Ultimate Packer Executable (UPX) packed version of PsExec to deploy across the network. Several domain admin credentials were hardcoded in the binary, facilitating the deployment of the binary across the network.

Depending on the switch (-s or -a), execution may create the following files:

• C:SystemDataM8yl89s7.exe (UPX-packed PsExec with a random name; SHA-256: ba3ec3f445683d0d0407157fda0c26fd669c0b8cc03f21770285a20b3133098f)
• C:SystemDatawEFT.exe (Additional BlackByte binary)
• C:SystemDataMsExchangeLog1.log (Log file)
• C:SystemDatarENEgOtiAtES (A vulnerable (CVE-2019-16098) driver RtCore64.sys used to evade detection by installed antivirus software; SHA-256: 01aa278b07b58dc46c84bd0b1b5c8e9ee4e62ea0bf7a695862444af32e87f1fd)
• C:SystemDataiHu6c4.ico (Random name – BlackBytes icon)
• C:SystemDataBB_Readme_file.txt (BlackByte ReadMe file)
• C:SystemDataskip_bypass.txt (Unknown)

BlackByte 2.0 ransomware capabilities

Some capabilities identified for the BlackByte 2.0 ransomware were:

• Antivirus bypass
  • The file rENEgOtiAtES created matches RTCore64.sys, a vulnerable driver (CVE-2049-16098) that allows any authenticated user to read or write to arbitrary memory
  • The BlackByte binary then creates and starts a service named RABAsSaa calling rENEgOtiAtES, and exploits this service to evade detection by installed antivirus software
• Process hollowing
  • Invokes svchost.exe, injects to it to complete device encryption, and self-deletes by executing the following command:
    • cmd.exe /c ping 1.1.1.1 -n 10 > Nul & Del “PATH_TO_BLACKBYTE” /F /Q
• Modification / disabling of Windows Firewall
  • The following commands are executed to either modify existing Windows Firewall rules, or to disable Windows Firewall entirely:
    • cmd /c netsh advfirewall set allprofiles state off
  • • cmd /c netsh advfirewall firewall set rule group=”File and Printer Sharing” new enable=Yes
    • cmd /c netsh advfirewall firewall set rule group=”Network Discovery” new enable=Yes
• Modification of volume shadow copies
  • The following commands are executed to destroy volume shadow copies on the machine:
    • cmd /c vssadmin Resize ShadowStorge /For=B: /On=B: /MaxSize=401MB
    • cmd /c vssadmin Resize ShadowStorage /For=B: /On=B: /MaxSize=UNBOUNDED
• Modification of registry keys/values
  • The following commands are executed to modify the registry, facilitating elevated execution on the device:
    • cmd /c reg add HKLMSOFTWAREMicrosoftWindowsCurrentVersionPoliciesSystem /v LocalAccountTokenFilterPolicy /t REG_DWORD /d 1 /f
  • • cmd /c reg add HKLMSOFTWAREMicrosoftWindowsCurrentVersionPoliciesSystem /v EnableLinkedConnections /t REG_DWORD /d 1 /f
    • cmd /c reg add HKLMSYSTEMCurrentControlSetControlFileSystem /v LongPathsEnabled /t REG_DWORD /d 1 /f
• Additional functionality
  • Ability to terminate running services and processes
  • Ability to enumerate and mount volumes and network shares for encryption
  • Perform anti-forensics technique timestomping (sets the file time of encrypted and ReadMe file to 2000-01-01 00:00:00)
  • Ability to perform anti-debugging techniques

Recommendations

To guard against BlackByte ransomware attacks, Microsoft recommends the following:

• Ensure that you have a patch management process in place and that patching for internet-exposed devices is prioritized; Understand and assess your cyber exposure with advanced vulnerability and configuration assessment tools like Microsoft Defender Vulnerability Management
• Implement an endpoint detection and response (EDR) solution like Microsoft Defender for Endpoint to gain visibility into malicious activity in real time across your network
• Ensure antivirus protections are updated regularly by turning on cloud-based protection and that your antivirus solution is configured to block threats
• Enable tamper protection to prevent components of Microsoft Defender Antivirus from being disabled
• Block inbound traffic from IPs specified in the indicators of compromise section of this report
• Block inbound traffic from TOR exit nodes
• Block inbound access from unauthorized public VPN services
• Restrict administrative privileges to prevent authorized system changes

DeviceProcessEvents
| where ProcessCommandLine has_any ("ExcludeDumpster","New-ExchangeCertificate") and ProcessCommandLine has_any (("-RequestFile","-FilePath")

DeviceProcessEvents
| where ProcessCommandLine has_any ("vssadmin","vssadmin.exe") and ProcessCommandLine has "Resize ShadowStorage" and ProcessCommandLine has_any ("MaxSize=401MB"," MaxSize=UNBOUNDED")

DeviceRegistryEvents
| where ActionType == "RegistryValueSet"
| where (RegistryKey has @"MicrosoftWindowsCurrentVersionRunOnce" and RegistryValueName == "MsEdgeMsE")
    or (RegistryKey has @"MicrosoftWindowsCurrentVersionRunOnceEx" and RegistryValueName == "MsEdgeMsE")
    or (RegistryKey has @"MicrosoftWindowsCurrentVersionRun" and RegistryValueName == "MsEdgeMsE")
| where RegistryValueData startswith @"rundll32"
| where RegistryValueData endswith @".dll,Default"
| project Timestamp,DeviceId,DeviceName,ActionType,RegistryKey,RegistryValueName,RegistryValueData
