This guide provides steps organizations can take to assess whether users have been targeted or compromised by threat actors exploiting CVE-2023-23397. A successful exploit of this vulnerability can result in unauthorized access to an organization’s environment by triggering a Net-NTLMv2 hash leak. Understanding the vulnerability and how it has been leveraged by threat actors can help guide the overall investigative process.
This document covers:
Exploitation of CVE-2023-23397 leaves very few forensic artifacts to discover in traditional endpoint forensic analysis. This blog describes how Microsoft Incident Response (previously known as Microsoft Detection and Response Team – DART) was able to detect the abuse of CVE-2023-23397 and how organizations can identify historical and present evidence of compromise through this vulnerability.
This vulnerability triggers a Net-NTLMv2 hash leak. Abuse of the leaked Net-NTLMv2 hash is post-exploitation activity. In this blog, we emphasize specific observed post-exploitation activity that targeted Microsoft Exchange Server. However, there are numerous ways that a leaked Net-NTLMv2 hash could be used by a threat actor.
CVE-2023-23397 is a critical elevation of privilege vulnerability in Microsoft Outlook on Windows. It is exploited when a threat actor delivers a specially crafted message to a user. This message includes the PidLidReminderFileParameter extended Messaging Application Programming Interface (MAPI) property, which must be set to a Universal Naming Convention (UNC) path share on a threat actor-controlled server (via Server message block (SMB)/transmission control protocol (TCP) port 445).
In exploitation of CVE-2023-23397, threat actors can specify the value for the PidLidReminderFileParameter in specially crafted messages to trigger a Net-NTLMv2 hash leak to threat actor-controlled servers.
The user does not need to interact with the message: if Outlook on Windows is open when the reminder is triggered, it allows exploitation. The connection to the remote SMB server sends the user’s Net-NTLMv2 hash in a negotiation message, which the threat actor can either a) relay for authentication against other systems that support NTLMv2 authentication or b) perform offline cracking to extract the password. As these are NTLMv2 hashes, they cannot be leveraged as part of a Pass-the-Hash technique. All versions of Microsoft Outlook on Windows are impacted. Outlook for Android, iOS, Mac, and users who use Outlook on the web (OWA) without using the Outlook client are not affected.
Microsoft has traced evidence of potential exploitation of this vulnerability as early as April 2022.
This technique leverages the Transport Neutral Encapsulation Format (TNEF). TNEF is a Microsoft-specific format for transmitting formatted email messages. A TNEF message contains a plaintext version of the message and an attachment that packages the original formatted version of the message. Typically, this attachment is named Winmail.dat. The Winmail.dat attachment includes formatting, attachments, and Outlook-specific features such as meeting requests including extended MAPI Properties. Details about TNEF can be found here:

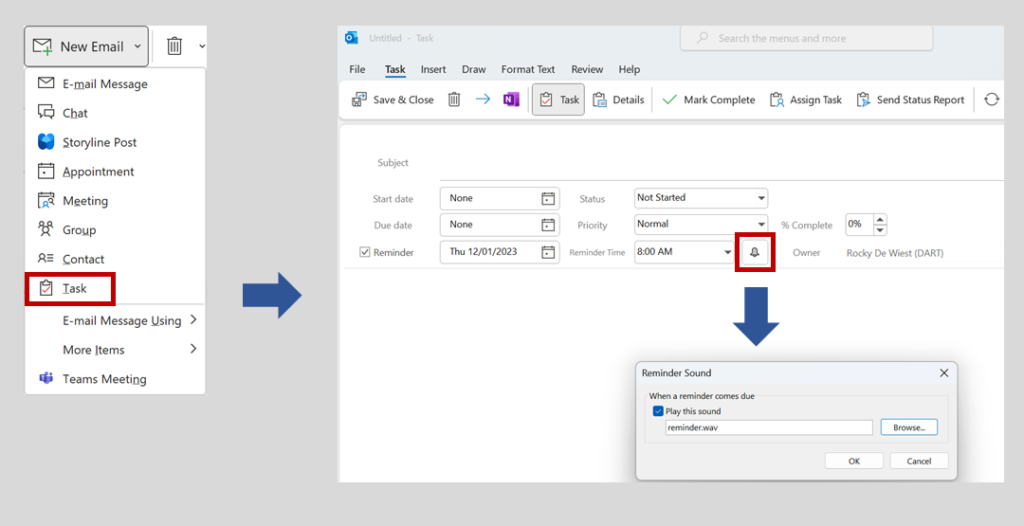

Outlook on Windows is designed to enable a user to specify a custom sound file associated with a reminder.

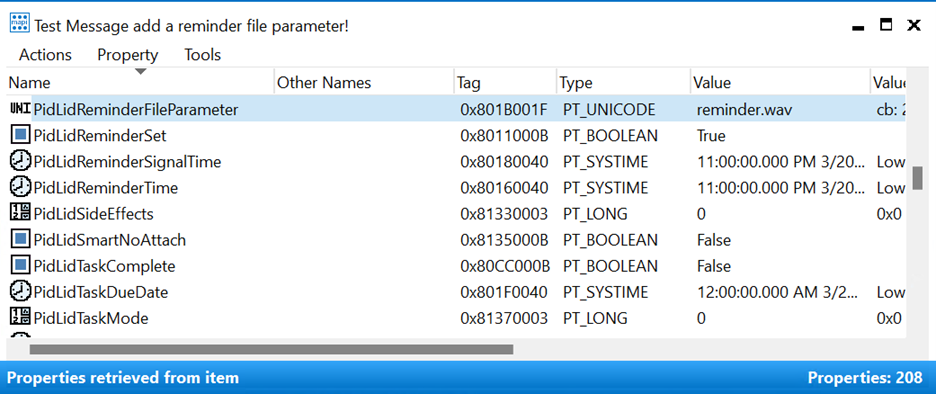

Modifying this value sets the PidLidReminderFileParameter extended MAPI property, which is stored as a property associated with the specific mail object. A tool such as MFCMAPI (see https://github.com/stephenegriffin/mfcmapi) can be used to view extended MAPI properties associated with an object. In the following screenshot, the value of the PidLidReminderFileParameter is shown set to reminder.wav, the PidLidReminderSet is “True”, and the reminder times are set to occur in the past.
To further deceive users, threat actors may also set the PidLidReminderTime property to remain dormant in the mailbox until a future date.
The affected Net-NTLMv2 hash belongs to the user signed in to the Windows device where the Outlook client application is running, regardless of the identity that received the malicious message. If the user does not dismiss the reminder/task Outlook alert or the reminder is recurring (i.e., fires multiple times), the user’s Net-NTLMv2 hash can be leaked multiple times.
Note: Interaction based on the WebDAV protocol is not at risk of leaking credentials via this exploit technique. While the threat actor infrastructure might request Net-NTLMv2 authentication, Windows will honor the defined internet security zones and will not send (leak) Net-NTLMv2 hashes. In other words, the vulnerability only affects the SMB protocol. If a target device can communicate to threat actor infrastructure over port 445 (SMB), Net-NTLMv2 hashes might be sent; however, if this communication via SMB is not possible, Windows will fall back to leveraging WebDAV. WebDAV will set up a connection with the threat actor infrastructure, but Net-NTLMv2 hashes will not be sent.
In a recent engagement, Microsoft Incident Response has observed additional post-exploitation activities following exploitation of CVE-2023-23397. The presence of artifacts associated with these post-exploitation activities can strongly suggest compromise of user accounts. These post-exploitation activities include:
Using a Net-NTLMv2 Relay attack against Exchange Servers (NOTE: Azure Active Directory, the default authentication service for Exchange Online, is not directly susceptible to a Net-NTLMv2 relay attack. However, it is possible that a federated identity provider may be susceptible).
Using the Exchange Web Services (EWS) API to send additional messages with the malicious value of the PidLidReminderFileParameter extended MAPI property to users inside and external to the organization.
Using the EWS API to enumerate folders in a compromised user’s mailbox and changing the mailbox folder permissions using the UpdateFolder API so that any authenticated user can access all mailbox folder content with “owner” privileges. This technique established additional persistent access to contents of user’s mailboxes even if a password was reset or otherwise remediated.

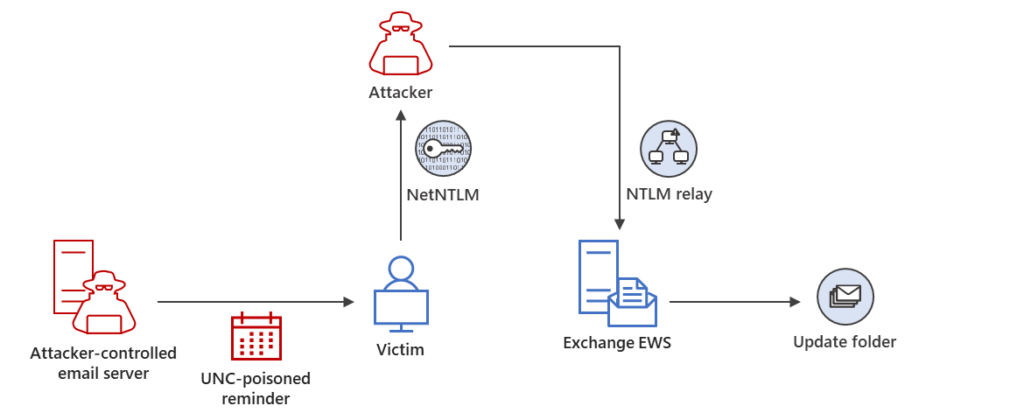

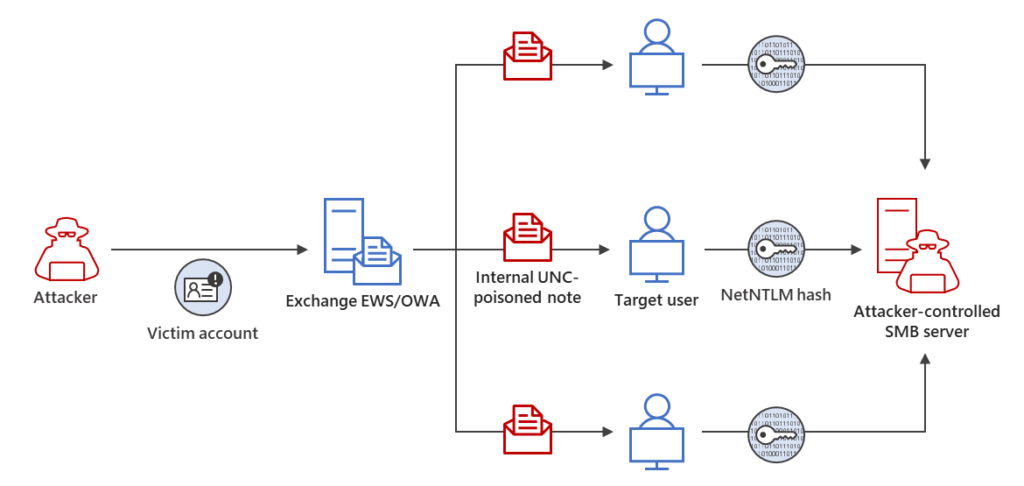

The following diagrams show initial access using a Net-NTLMv2 Relay attack, persistence via modifying mailbox folder permissions, and lateral movement by sending additional malicious messages.
Organizations should use an in-depth and comprehensive threat hunting strategy to identify potential credential compromise through CVE-2023-23397. While running the Exchange scanning script provided by Microsoft is an effective first step, this script does not provide visibility into malicious messages for all scenarios.
If messages have been deleted from Exchange (some organizations may have a policy limiting data retention), then the messages will no longer be available in Exchange.
If no suspicious or malicious values are identified through the Exchange scanning script, organizations should also hunt for known threat actor indicators of compromise (IOCs) related to the exploitation of this vulnerability.
For example, if IP addresses and URIs are extracted from the PidLidReminderFileParameter values, incident responders should review all available security telemetry for presence of these newly identified indicators. Data sources can include:
For example, using advanced hunting in Microsoft Defender for Endpoint, multiple tables can be queried simultaneously to uncover activities related to IP address indicators:
//Search for activity around IoAs
let IoCs = dynamic(["<IP Address 1>","<IP Address 2>"]);
let range = ago(30d);
union (DeviceProcessEvents | where Timestamp > range | where ProcessCommandLine has_any (IoCs)),
(DeviceNetworkEvents | where Timestamp > range | where RemoteIP in (IoCs) or LocalIP in (IoCs)),
(DeviceLogonEvents | where Timestamp > range | where RemoteIP in (IoCs))
| extend SignatureName = tostring(parse_json(AdditionalFields).SignatureName)
| project-reorder Timestamp, DeviceName, ActionType, LocalIP,RemoteIP, RemotePort,SignatureName,ProcessCommandLine
| sort by Timestamp desc
There are several approaches to identifying whether your organization was targeted, including the following (ordered from the most high-fidelity to more anomaly-based approach):
Users in targeted organizations will have received messages with the malicious value of the PidLidReminderFileParameter value set. In some cases, users may have reported these suspicious messages, tasks, or calendar invitations to their security team. A high-level investigation of messages potentially exploiting CVE-2023-23397 may not reveal any overt malicious elements, as embedding malicious URLs or other content in the message body itself is not necessary. A deeper analysis of the message’s extended MAPI properties (specifically, the PidLidReminderFileParameter value) is required to confirm if it is malicious.
Organizations should search their Exchange environment for messages where the PidLidReminderFileParameter value is set. Microsoft has provided a script to enable organizations perform this search here, including instructions: https://microsoft.github.io/CSS-Exchange/Security/CVE-2023-23397/.

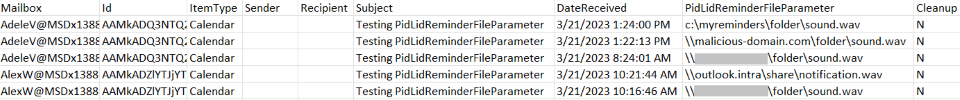

The script produces a CSV file enumerating each message that has the PidLidReminderFileParameter property set, and will report on targets that are local on the computer, internal to the network, or on the internet. Any messages identified where this property references a server in the “InternetZone” should be considered malicious. References to intranet servers should also be carefully analyzed. Figure 5 depicts a sample output from this script.
Customers with a large number of mailboxes in Exchange may consider customizing the script logic strategically, by:
If any suspicious or malicious messages are identified via this script, organizations should further triage their environment, including:

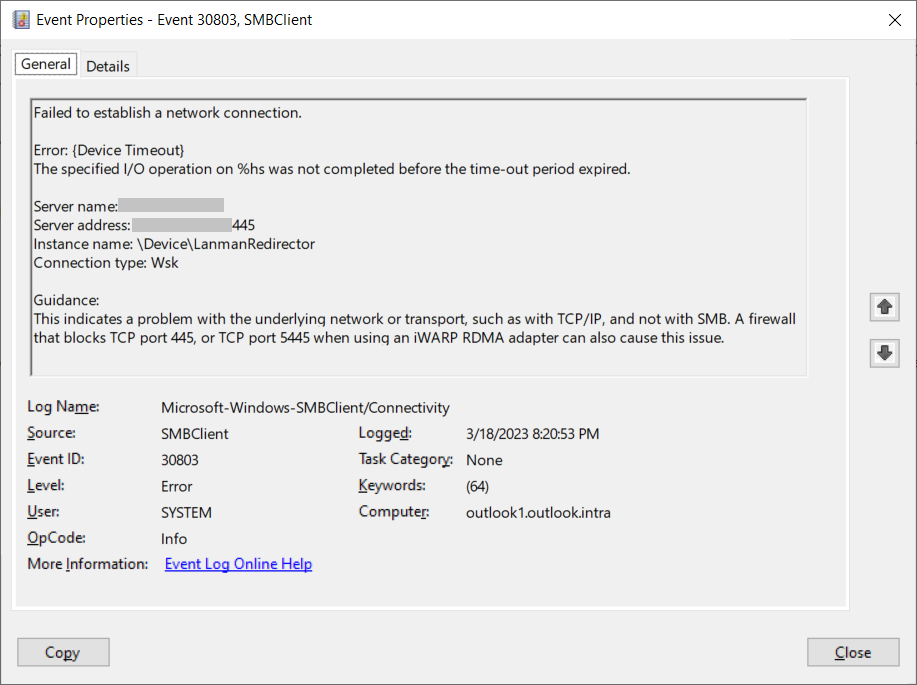

Organizations should review SMBClient event logging, Process Creation events, and other available network telemetry to identify potential exploitation via CVE-2023-23397. To determine whether any such exploitation led to a threat actor gaining unauthorized access to the environment, analysis of authentication events, network perimeter logging, and Exchange Server logging (if Exchange Server is used by the organization) will be instrumental.
This event logging channel records server errors and warnings for both SMB and WebDAV connections, and provides a source to identify potential compromise through CVE-2023-23397, as it may reveal failed outbound connection attempts to threat actor-controlled infrastructure.
The ServerName field in EventIds 30800, 30803, 30806, 30804, and 31001 should be monitored for non-trusted servers, as illustrated in Figure 6.
It is critical to note that the presence of these events cannot be used to confirm whether credentials were leaked, and can only be used as evidence that an outbound connection attempt was made by the device but failed (due to a protocol or network error). Microsoft Incident Response observed during an engagement that a device affected by CVE-2023-23397 attempted to connect multiple times to threat actor infrastructure, failing occasionally and producing these event log entries, but otherwise successfully leaking credentials to the threat actor.

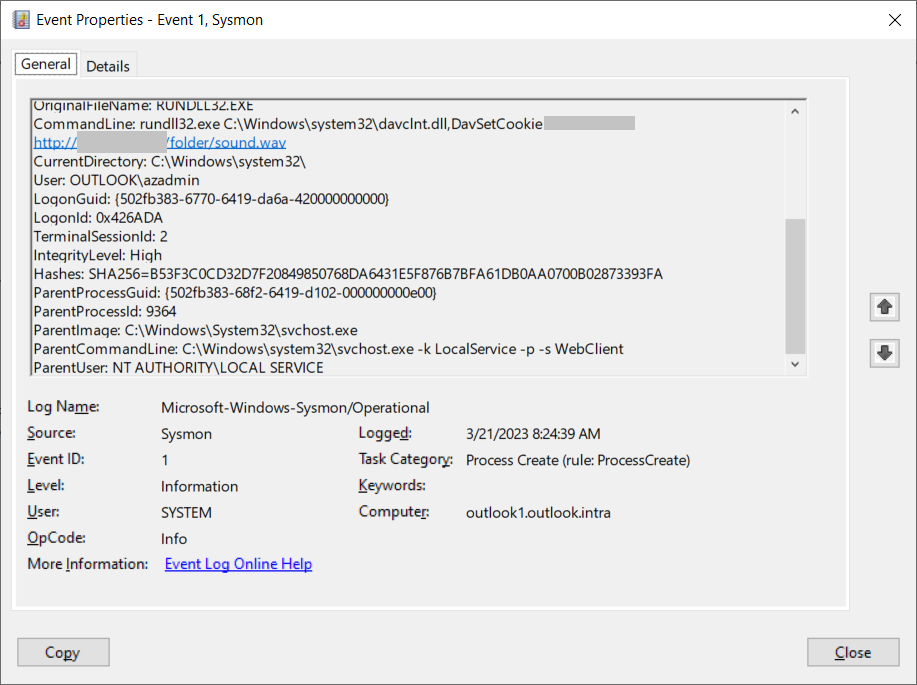

If SMB traffic to the internet is blocked by your organization or otherwise fails, Windows will fall back to using WebDAV to attempt to complete the connection. This behavior, paired with CVE-2023-23397 execution, results in a potentially unique Process Creation event and command line parameters that organizations can hunt in endpoint detection and response (EDR) telemetry or other endpoint logging (such as Sysmon logs, as depicted in Figure 7):
It is possible that the filesystem URL may not have a traditional .wav file extension.
It is critical to note that the presence of this process tree in your environment cannot be used to confirm whether credentials were leaked. It can only be used as evidence that a message exploiting CVE-2023-23397 was delivered, triggered an attempted outbound SMB connection/credential leak to threat actor infrastructure, but failed in the given instance as credentials cannot be leaked through WebDAV with this vulnerability. If this failure was the result of a transient network issue (rather than SMB being blocked deliberately and systemically), it is still possible that credentials may have been leaked.
For organizations using Exchange Server, there are several log sources that can provide value in hunting for indicators of attack or compromise through CVE-2023-23397. These log sources may potentially reveal unauthorized access to Exchange Server via a Net-NTLMv2 Relay attack, as well as possible post-exploitation activities. These logs do not provide value in determining whether a NTLMv2 hash was leaked, however.
Microsoft provides this tool to enable organizations to collect relevant Exchange Server logs: https://microsoft.github.io/CSS-Exchange/Diagnostics/ExchangeLogCollector/.
Microsoft Incident Response recommends collecting all logs with the -AllPossibleLogs command line flag; however, a more minimal collection can be obtained using the following flags:
Collected logs can be reviewed by ingesting them into Azure Data Explorer, Log Analytics in Azure Monitor, or another SIEM or log parsing utility (such as Log Parser Studio).
Analysis of IIS logs from Exchange Server (or, if the server is behind a reverse proxy, the IIS logs from the proxy server) can provide insight into potential threat actor behavior.
NOTE: If Exchange Server is protected by a reverse proxy, client IP values (cIP) in logging will only show the IP address of the proxy server. In this case, access to logs from the proxy is critical to determine if connections originated from untrusted IP addresses.
If a reverse proxy is implemented and configured to register headers, such as those that include authentication methods and Net-NTLMv2 negotiations, it is possible to identify Net-NTLMv2 Relay behavior. Microsoft Incident Response was able to leverage these logs in a recent engagement: certain users appeared to authenticate from their appropriate and expected workstations, but the authentications originated from IP addresses associated with threat actor infrastructure.
Exchange Web Services (EWS) logs include the AuthenticationType. If a Net-NTLMv2 Relay attack was leveraged against an EWS Endpoint, it can often be seen in these logs. Strategies to hunt for anomalies in these logs include:
Any authentications using NTLMv2 originating from unknown or untrusted IP addresses should be further examined. If a single external IP address is associated with multiple users’ authentications, and the IP address is not consistent with those users’ typical patterns of behavior (based on factors such as geolocation, hosting provider, or User Agent string), events associated with such an IP should be investigated further.
If a threat actor changes mailbox permissions or mailbox folder permissions as part of their post-exploitation behaviors, SoapActions including “GetFolder”, “UpdateFolder”, and “FindFolder” may be observed for the combination of the authenticated user and IP address.
If a threat actor attempts to access email for a compromised user, SoapActions including “ResolveNames”,”GetDelegate”,”GetFolder”,”FindFolder”,”FindItem”, and “GetItem” may be observed for the combination of the authenticated user and IP address.
The following Kusto Query Language (KQL) query can assist with parsing and summarizing EWS logging for the purposes described above, if the relevant logs have been ingested into Azure Data Explorer.
EWSLogging
| where AuthenticationType == 'NTLM'
| extend IpAddress = tostring(split(ClientIpAddress,":")[0])
| summarize count(), min(['DateTime']),max(['DateTime']),
make_set(SoapAction), make_set(UserAgent) by AuthenticatedUser, IpAddress
HTTP Proxy EWS logs can be useful to identify the details of NTLMv2 authentications. The user name, workstation name, and domain name can be extracted from those values using the techniques described in
Exchange Server Message Tracking Logs are useful to identify messages with certain subjects or from certain sender IP address values. Refer to the following Microsoft Learn pages for more details:

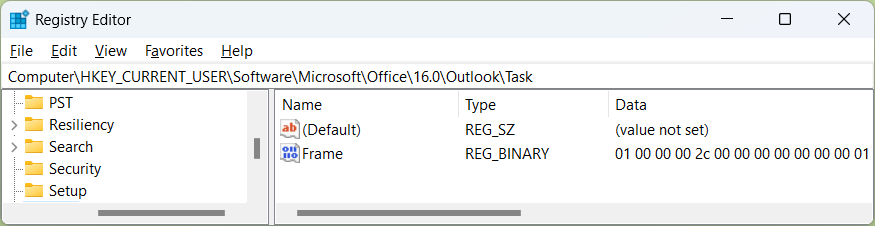

Microsoft Incident Response identified a registry key that can indicate that a reminder was triggered for a Note or Task item. This registry key holds certain properties (e.g., location and size) of the UI window that is created when the reminder triggered. If a user has not used the reminder functionality within Tasks or Notes, these registry keys will not exist. Figure 8 depicts the Task key as viewed in RegEdit:
The presence of these keys provides evidence that a user has received a reminder for a Task or Note. If the presence of this registry key is identified, and appears to be anomalistic for your organization, threat hunters should examine the user’s mailbox as well as network/endpoint telemetry for further evidence of compromise using the techniques described in this blog, especially by performing temporal analysis around the LastModified timestamp of the registry keys.
Network perimeter telemetry and/or EDR data can be investigated for SMB connections involving external IP addresses as part of a larger threat hunting strategy.
The following query can be used in the advanced hunting portal of Microsoft Defender for Endpoint to further align SMB connections with Net-NTLMv2 behavior.
The query will identify connections involving port 445 (standard for SMB) involving remote public IP addresses. By filtering on both Local and Remote parameters, the query will also include records of the NetworkSignatureInspected ActionType. If threat actor infrastructure is attempting to harvest Net-NTLMv2 credentials, the NetworkSignatureInspected ActionType should include a SignatureName of NTLM-Challenge. This indicates a Net-NTLMv2 negotiation was attempted.
For more information about the NetworkSignatureInspected actions, check Hunting for network signatures in Microsoft Defender for Endpoint.
//Hunt for SMB to the internet
let range = ago(30d);
DeviceNetworkEvents
| where Timestamp > range
//Connections have RemotePort set to 445
//NetworkSignatureInspected have LocalPort set to 445
| where RemotePort == 445 or LocalPort == 445
| where not(ipv4_is_private(RemoteIP)) or not(ipv4_is_private(LocalIP))
| extend SignatureName = tostring(parse_json(AdditionalFields).SignatureName)
| project-reorder Timestamp, DeviceName, ActionType, LocalIP,RemoteIP, LocalPort, RemotePort,SignatureName
| sort by Timestamp desc
NOTE: Organizations may consider filtering out their own public IP address space from the query above.
Organizations using Microsoft Defender for Endpoint or Microsoft Defender for Office 365 can identify threats using the following detections.
Microsoft Incident Response recommends the following steps to mitigate this type of attack and the observed post-exploitation behavior:
To address this vulnerability, you must install the Outlook security update, regardless of where your mail is hosted (e.g., Exchange Online, Exchange Server, some other platform) or your organization’s support for NTLM authentication.
When using Exchange Online or Exchange server as your mail host, you can take the following additional actions:
Outlook for Windows first checks if the path specified by the PidLidReminderFileParameter message property is to a location that is not in the local or trusted network. If the path points outside of the local or trusted network locations, the parameter is not honored when updates are installed.
Exchange Online drops the PidLidReminderFileParameter message property at TNEF conversion when a new message is received.
Exchange Server (with March 2023 SU) drops the PidLidReminderFileParameter message property at TNEF conversion when a new message is received.
While leveraging NTLMv2 hashes to gain unauthorized access to resources is not a new technique, the exploitation of CVE-2023-23397 is novel and stealthy. Even when users reported suspicious reminders on tasks, initial security review of the messages, tasks, or calendar items involved did not result in detection of the malicious activity. Furthermore, the lack of any required user interaction contributes to the unique nature of this vulnerability. In this document, Microsoft Incident Response has highlighted threat hunting techniques and strategy for exploitation of this CVE, alongside some hunting techniques for observed post-exploitation threat actor behaviors. Furthermore, a broad threat hunting for anomalous user activity consistent with credential compromise is advised.
Several malicious samples have been uploaded to VirusTotal.com and a signature has been created that identifies potentially malicious messages associated with exploitation of CVE-2023-23397.
VirusTotal subscribers can review those results here: https://www.virustotal.com/gui/search/crowdsourced_yara_rule%253A000bc4a247%257CEXPL_SUSP_Outlook_CVE_2023_23397_Exfil_IP_Mar23
Known IP addresses associated with exploitation of this vulnerability in the above VirusTotal results are listed below. NOTE: These IP addresses were assessed by Microsoft Threat Intelligence to be compromised infrastructure.
